57 Series Hybrid Stepper Motor
Product Introduction
- Offer 0.6-3 N·m torque, ensuring stable and precise motion control.
- Compact design with 42-100mm length, supporting 1-5A current for versatility.
Product Application
- CCTV monitor
- Medical appliance
- OA financial equipment
- Industrial equip
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Current (RmsA） |
Resistance （Ω） |
Inductance （mH） |
Holding Torque （N·m） |
Rotor Inertia （g·cm²） |
Motor Length （mm） |
Motor Weight （g） |
| 23H2042 | 1 | 4.2 | 9 | 0.6 | 140 | 42 | 460 |
| 23H2045 | 1 | 4.5 | 12 | 0.8 | 180 | 45 | 520 |
| 23H2051 | 2 | 1.5 | 4.4 | 1 | 240 | 51 | 640 |
| 23H2055 | 2 | 1.6 | 5.2 | 1.2 | 280 | 55 | 720 |
| 23H2065 | 3 | 0.9 | 2.7 | 1.6 | 350 | 65 | 860 |
| 23H2076 | 4 | 0.6 | 2.4 | 2 | 480 | 76 | 1060 |
| 23H2100 | 5 | 0.46 | 2.3 | 3 | 720 | 100 | 1500 |

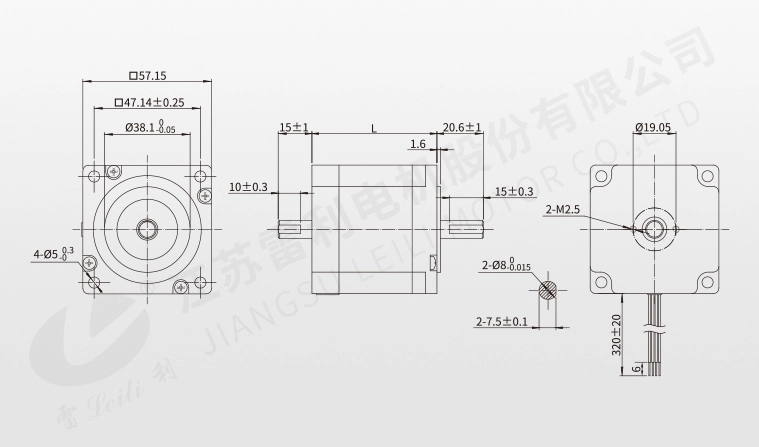

Mechanical Dimensions: mm
