50SM25-3 Permanent Magnet Synchronous Motor
Product Introduction
- Model:50SM25-3
- Operates at 12V, 24V, or 220V with ≥1.41 kgf·cm torque and ≤3W power.
- Maintains ≤60K temperature rise, ≤40A noise, and ≤9V starting voltage for reliable performance.
Product Application
- Appliances: Air conditioning
- Industry: Valve control, timer
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Voltage | Freq | RPM | Current | Power | Output Torque | Starting Voltage | Temp | Noise | Insulation Level |
| （V） | (Hz) | (RPM) | （mA) | (W) | (kgf,cm) | （V） | (K) | (A) | ||
| 50SM25-3 | 12 | 60 | 1.333 | ≤300 | ≤3 | ≥1.41 | ≤9 | ≤60 | ≤40 | A |
| 12 | 60 | 2 | ≤300 | ≤3 | ≥1.41 | ≤19 | ≤60 | ≤40 | ||
| 24 | 50/60 | 1.67/2 | ≤240 | ≤3 | ≥0.19 | ≤90 | ≤60 | ≤40 | ||
| 220 | 50/60 | 1.67/2 | ≤300 | ≤3 | ≥0.5 | ≤90 | ≤60 | ≤40 |

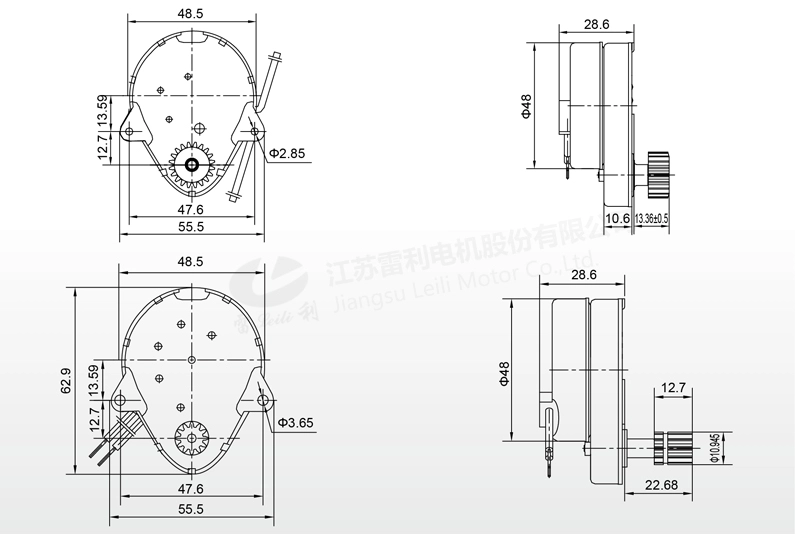

Mechanical Dimensions: mm
