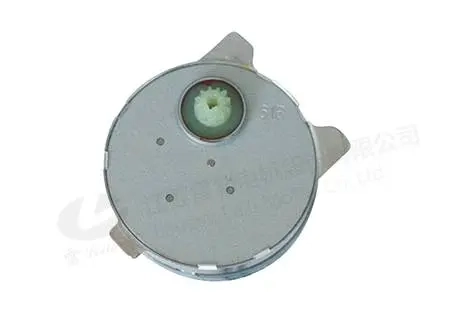

50SM25-2 Permanent Magnet Synchronous Motor
Product Introduction
- Model:50SM25-2
- Operates at 115V (60Hz) with ≤3W power and ≥0.30 kgf·cm torque.
- Maintains ≤60K temperature rise, ≤40A noise level, and operates at ≤90V starting voltage.
Product Application
- Appliances: Air conditioning
- Industry: Valve control, timer
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Voltage | Freq | RPM | Current | Power | Output Torque | Starting Voltage | Temp | Noise | Insulation Level |
| （V） | (Hz) | (RPM) | （mA) | (W) | (kgf,cm) | （V） | (K) | (A) | ||
| 50SM25-2 | 115 | 60 | 2.656 | ≤60 | ≤3 | ≥0.30 | ≤90 | ≤60 | ≤40 | A |
| 115 | 60 | 3 | ≤60 | ≤3 | ≥0.30 | ≤90 | ≤60 | ≤40 | ||
| 115 | 60 | 4.5 | ≤60 | ≤3 | ≥0.30 | ≤90 | ≤60 | ≤40 | ||
| 115 | 60 | 9 | ≤60 | ≤3 | ≥0.30 | ≤90 | ≤60 | ≤4 |

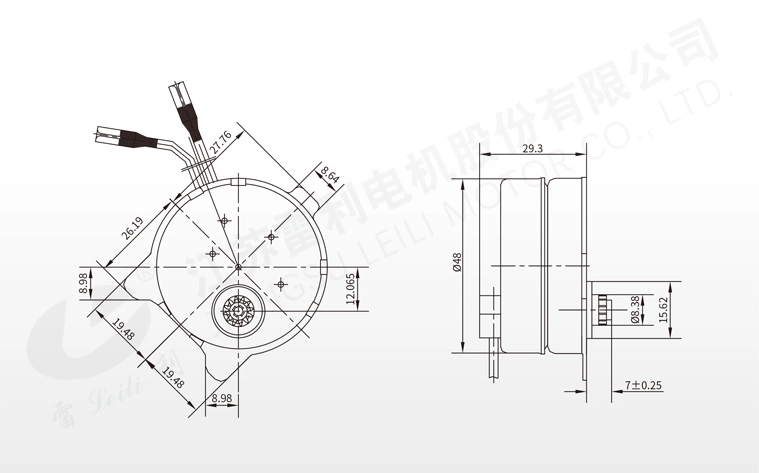

Mechanical Dimensions: mm
