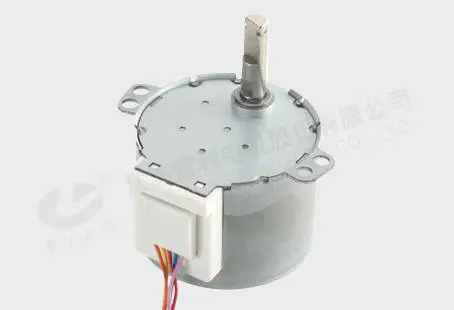

50BYJ46 Geared Stepper Motor

Product Introduction
Model:50BYJ46
The rotor of Leili permanent magnet stepping motor (BYJ series stepping motor) is made of permanent magnet material, and the number of poles of the rotor is the same with that of the stator. It is characterized by good dynamic performance and large output torque
Application
Home appliances: air conditioner, air purifier
Optional parts
Shaft length, frame

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:
Quantity:

PDF Export

  • Home appliance

  • 50

  • 7.5

  • 12, 24

  • 0-100, 101-200, 201-300

  • 100, 250, 200

  • 201-300, 301-400, 401-500, 500+

Performance parameter


Motor type Voltage Resistance Frequency Pull in torque Self-positioning torque No-load pull-in frequency No-load pull-out frequency Temperature rise Noise Step Angle Insulation class
V (Ω) (PPS) (mN.m) (mN.m) (PPS) (PPS) K (A) (1-2相)
50BYJ46 12 50 200 ≥196 ≥260 ≥320 ≥350 ≤60 ≤40 7.5°/33.3 E
12 40 250 ≥200 ≥260 ≥350 ≥450 ≤60 ≤40 7.5°/43
12 60 100 ≥392 ≥343 ≥200 ≥200 ≤60 ≤40 7.5°/60
12 70 100 ≥550 ≥600 ≥200 ≥200 ≤60 ≤40 7.5°/99
24 110 250 ≥343 ≥260 ≥350 ≥450 ≤60 ≤40 7.5°/43
24 150 250 ≥637 ≥600 ≥400 ≥400 ≤60 ≤40 7.5°/60
24 250 100 ≥588 ≥588 ≥200 ≥200 ≤60 ≤40 7.5°/99

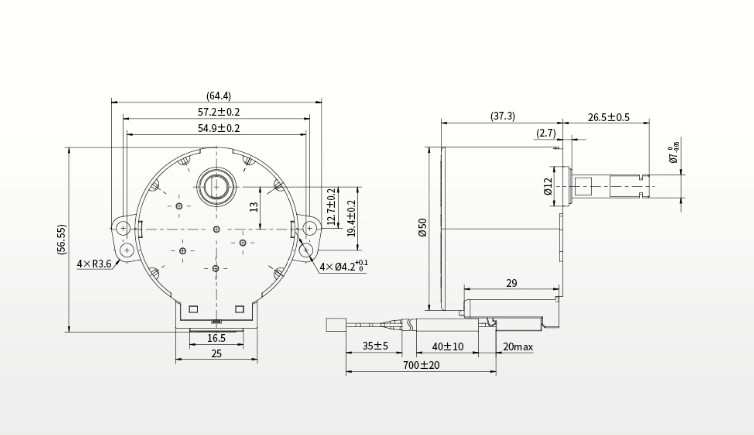

Mechanical dimension

Geared stepper motor
