45SM25 Permanent Magnet Synchronous Motor
Product Introduction
- Model:45SM25
- Energy efficient operates at 120v, 60hz, 1 rpm with power consumption ≤5w and torque ≥0.45 kgf·cm.
- Reliable operation ensures ≤60k temperature rise, low noise ≤40a, and insulation class A for durability.
Product Application
- Industry: valve control, timer
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Voltage （V） |
Freq (Hz) |
RPM (RPM) |
Current （mA) |
Power (W) |
Output Torque (kgf, cm) |
Starting Voltage （V） |
Temp (K) |
Noise (A) |
Insulation Level |
| 45SM25 | 120 | 60 | 1 | ≤25 | ≤5 | ≥0.45 | ≤90 | ≤60 | ≤40 | A |

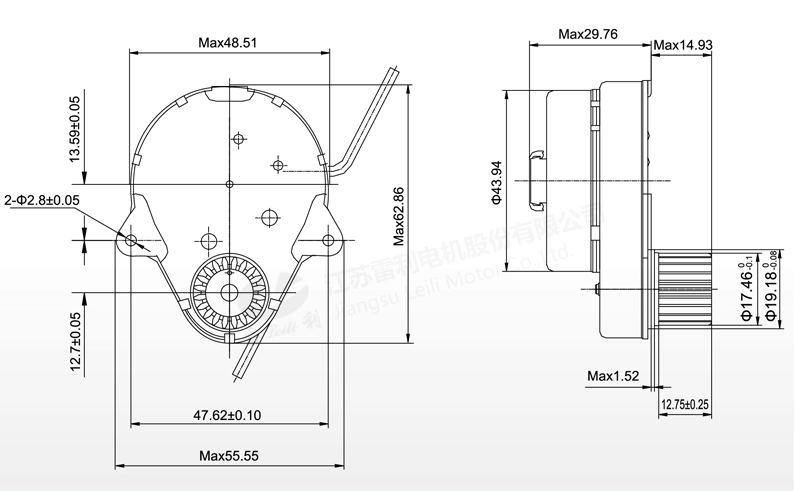

Mechanical Dimensions: mm
