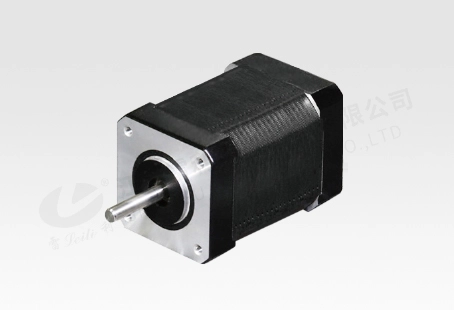

42 Series Hybrid Stepper Motor
Product Introduction
- 42 series motors deliver 0.16-0.72 N·m torque, compact size ensures versatile installation.
- Low inductance and inertia enhance efficiency, ideal for precise motion control.
Product Application
- CCTV monitor
- Medical appliance
- OA financial equipment
- Industrial equipment
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Current (RmsA) |
Resistance （Ω） |
Inductance （mH） |
Holding Torque （N·m） |
Rotor Inertia （g·cm²） |
Motor length （mm） |
Motor Weight （g） |
| 17H2031 | 1.2 | 1.7 | 2.3 | 0.16 | 23 | 31 | 200 |
| 17H2034 | 1.2 | 1.7 | 2.7 | 0.25 | 25 | 34 | 230 |
| 17H2041 | 1.2 | 2.4 | 4.7 | 0.4 | 54 | 41 | 300 |
| 17H2049 | 2 | 1.3 | 2 | 0.48 | 77 | 49 | 360 |
| 17H2061 | 2 | 1.7 | 3.6 | 0.72 | 110 | 61 | 500 |

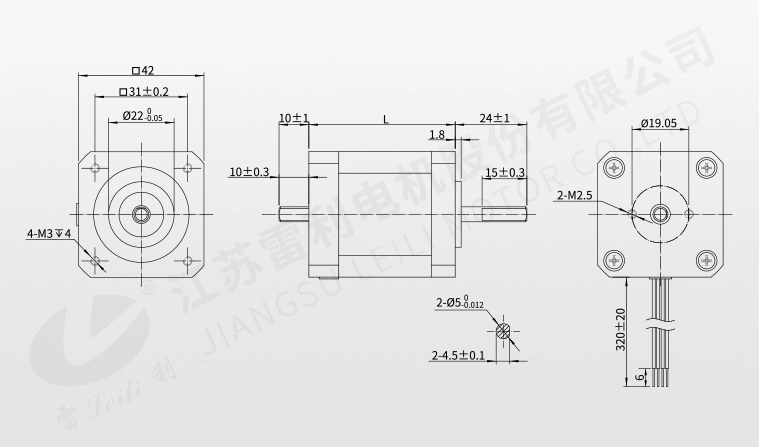

Mechanical Dimensions: mm
Frequency-torqu Characteristics
