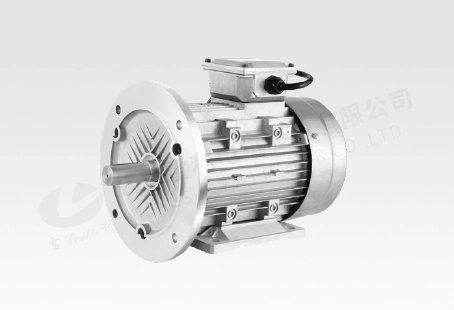

3KW Permanent Magnet Synchronous Motor
Product Introduction
- High-efficiency motors up to 92.6%, rated power 3 kW, and rated torque 19.1 N·m.
- Reliable protection level 55, rated voltage 380V, rated current 6.8A, frequency up to 250Hz.
Product Application
- Industrial Equipment
- Industrial Water Pump
- Industrial Fan
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Power | Rated Speed | Rated Torque | Frame | Rated Voltage | Rated Current | Frequency | Pole | Efficiency | Power | Protection |
| (kW) | (r/min) | (N·m) | (V) | （A） | (Hz) | Factors | Level | ||||
| ZB-100L2-1500 | 3 | 1500 | 19.1 | 100L | 380 | 6.6 | 125 | 10 | 90.3 | 0.98 | 55 |
| ZB-90L2-3000 | 3 | 3000 | 9.55 | 90L | 380 | 6.8 | 250 | 10 | 92.6 | 0.98 | 55 |
| ZB-100L1-3000 | 3 | 3000 | 9.55 | 100L | 380 | 6.8 | 250 | 10 | 92.6 | 0.98 | 55 |
Mechanical Dimensions: mm
B3 chassis with foot, end cover without flange
| Frame | Installation Size(mm) | Outline Size(mm) | ||||||||||||
| A | B | C | D | E | F | G | H | K | AB | AC | AD | HD | L | |
| 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 180 | 162 | 125 | 215 | 345 |
| 90L | 140 | 125 | 56 | 28 | 60 | 8 | 24 | 90 | 10 | 180 | 162 | 125 | 215 | 355 |
| 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 196 | 193 | 155 | 255 | 390 |
| 100L | 160 | 140 | 63 | 38 | 80 | 10 | 33 | 100 | 12 | 196 | 193 | 155 | 255 | 410 |

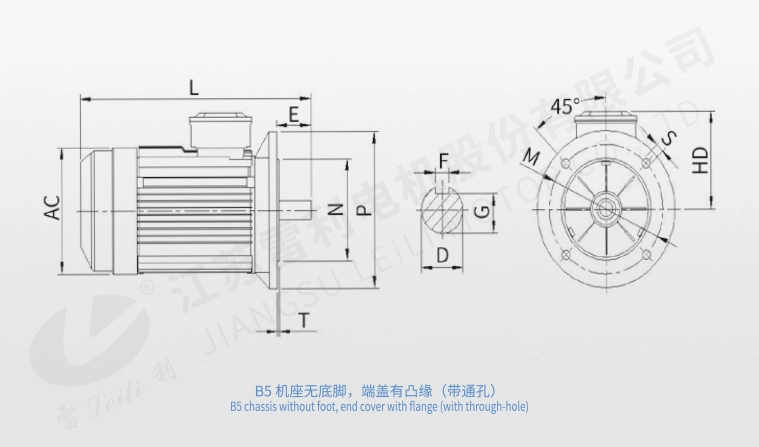

B5 chassis without foot, end cover with flange (with through-hole)
| Frame | Installation Size(mm) | Outline Size(mm) | ||||||||||
| D | E | F | G | M | N | P | S | T | AC | AD | L | |
| 90L | 24 | 50 | 8 | 20 | 165 | 130 | 200 | 12 | 3 | 162 | 125 | 345 |
| 90L | 28 | 60 | 8 | 24 | 165 | 130 | 200 | 12 | 3 | 162 | 125 | 355 |
| 100L | 28 | 60 | 8 | 24 | 215 | 180 | 250 | 14.5 | 4 | 193 | 155 | 390 |
| 100L | 38 | 80 | 10 | 33 | 215 | 180 | 250 | 14.5 | 4 | 193 | 155 | 410 |
B35 chassis with foot, end cover with flange (with through-hole)
| Frame | Installation Size(mm) | Outline Size(mm) | |||||||||||||||||
| A | B | C | D | E | F | G | H | K | M | N | P | S | T | AB | AC | AD | HD | L | |
| 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 12 | 3 | 180 | 162 | 125 | 215 | 345 |
| 90L | 140 | 125 | 56 | 28 | 60 | 8 | 24 | 90 | 10 | 165 | 130 | 200 | 12 | 3 | 180 | 162 | 125 | 215 | 355 |
| 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 215 | 180 | 250 | 14.5 | 4 | 196 | 193 | 155 | 255 | 390 |
| 100L | 160 | 140 | 63 | 38 | 80 | 10 | 33 | 100 | 12 | 215 | 180 | 250 | 14.5 | 4 | 196 | 193 | 155 | 255 | 410 |
B34 chassis with foot, end cover with flange (with screw hole)
| Frame | Installation Size(mm) | Outline Size(mm) | |||||||||||||||||
| A | B | C | D | E | F | G | H | K | M | N | P | S | T | AB | AC | AD | HD | L | |
| 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 128 | M10 | 3.5 | 180 | 162 | 125 | 215 | 345 |
| 90L | 140 | 125 | 56 | 28 | 60 | 8 | 24 | 90 | 10 | 115 | 95 | 128 | M11 | 3.5 | 180 | 162 | 125 | 215 | 355 |
| 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 130 | 110 | 152 | M11 | 4 | 196 | 193 | 155 | 255 | 390 |
| 100L | 160 | 140 | 63 | 38 | 80 | 10 | 33 | 100 | 12 | 130 | 110 | 152 | M11 | 4 | 196 | 193 | 155 | 255 | 410 |

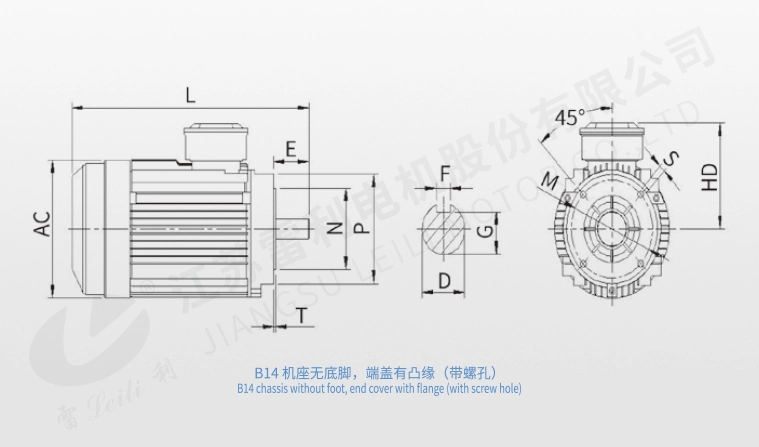

B14 chassis without foot, end cover with flange (with screw hole)
| Frame | Installation Size(mm) | Outline Size(mm) | ||||||||||
| D | E | F | G | M | N | P | S | T | AC | AD | L | |
| 90L | 24 | 50 | 8 | 20 | 115 | 95 | 128 | M8 | 3.5 | 162 | 125 | 345 |
| 90L | 28 | 60 | 8 | 24 | 115 | 95 | 128 | M8 | 3.5 | 162 | 125 | 355 |
| 100L | 28 | 60 | 8 | 24 | 130 | 110 | 152 | M8 | 4 | 193 | 155 | 390 |
| 100L | 38 | 80 | 10 | 33 | 130 | 110 | 152 | M8 | 4 | 193 | 155 | 410 |
