37SM22 Permanent Magnet Synchronous Motor
Product Introduction
- Model:37SM22
- Supports 220V (50/60Hz) and 100-120V (60Hz) with 500-600 RPM rotational speed.
- Delivers ≥2 mN·m torque, ≤3W power consumption, and maintains ≤65K temperature rise.
Product Application
- Industry: valve control, timer
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Vol (V) |
Rated Freq (Hz) |
RPM (RPM) |
Current （mA) |
Power (W) |
Torque (mN.m) |
Starting Vol （V） |
Temp (K) |
Noise (A) |
Insulation Level |
| 37SM22 | 220 | 50/60 | 500/600 | ≤20 | ≤3 | ≥2 | ≤160 | ≤65 | ≤60 | A |
| 100-120 | 60 | 600 | ≤30 | ≤3 | ≥2 | ≤70 | ≤65 | ≤60 | A |

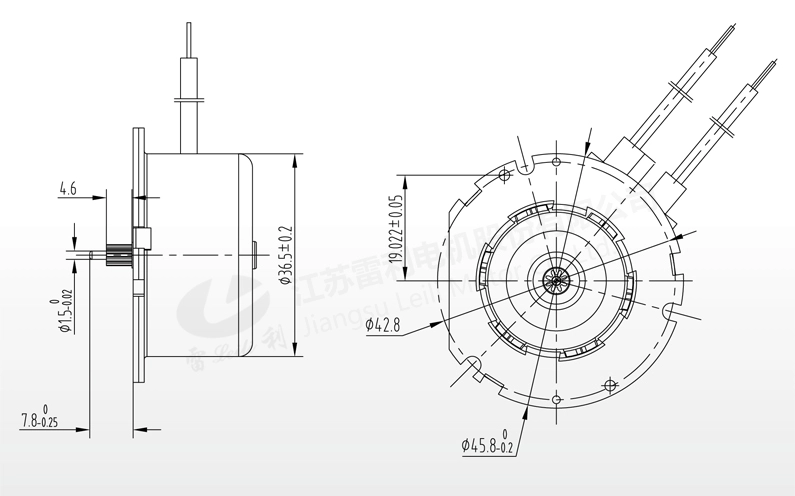

Mechanical Dimensions: mm
