36WS1-1 Outer Rotor Brushless DC Motor
Product Introduction
- DC Brushless Motor 36WS1-1
- Rated speed of 3650 RPM with pull-out torque ≥ 7 mN•m and current ≤ 800mA.
- Insulation resistance ≥ 100MΩ and dielectric strength of AC600V for enhanced safety.
Product Application
- Auto parts
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Voltage (V) |
Working Voltage (V) |
Rated Speed (RPM) |
Pull Out Torque (mN•m) |
Current (mA) |
Insulation Resistance (MΩ) |
Dielectric Strength Of Insulation |
| 36WS1-1 | 12 | 9~16 | 3650 | ≥ 7 | ≤ 800 | DC500V, ≥ 100MΩ | AC600V, 1s, 1mA |

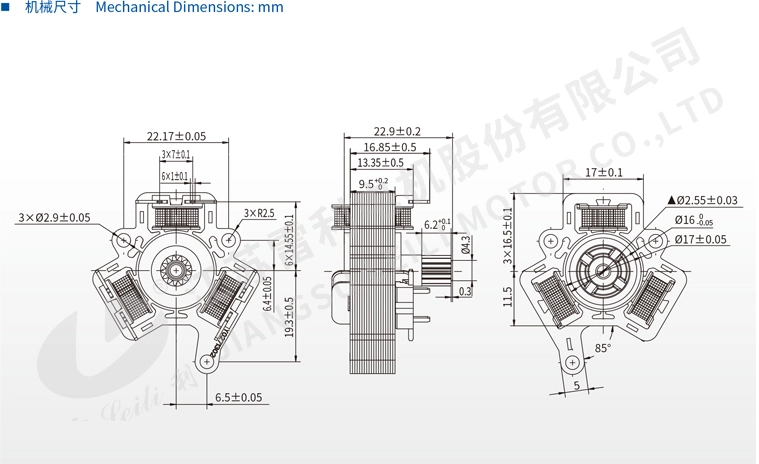

Mechanical Dimensions: mm
