35SM30 Permanent Magnet Synchronous Motor
Product Introduction
- Model:35SM30
- Compact and efficient operates at 24v, 50hz, 5.8 rpm with power consumption ≤2w and torque ≥0.5 kgf·cm.
- Reliable performance maintains ≤65k temperature rise, low noise ≤40a, and insulation class A for durability.
Product Application
- Home appliances: air conditioner, refrigerator, smart sanitary ware
- Industry: automatic door locks, monitors, electronic instruments
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Voltage (V) |
Freq (Hz) |
RPM (RPM) |
Current （mA) |
Power (W) |
Output Torque (kgf, cm) |
Temp (K) |
Noise (A) |
Insulation Level |
| 35SM30 | 24 | 50 | 5.8 | ≤80 | ≤2 | ≥0.5 | ≤65 | ≤40 | A |

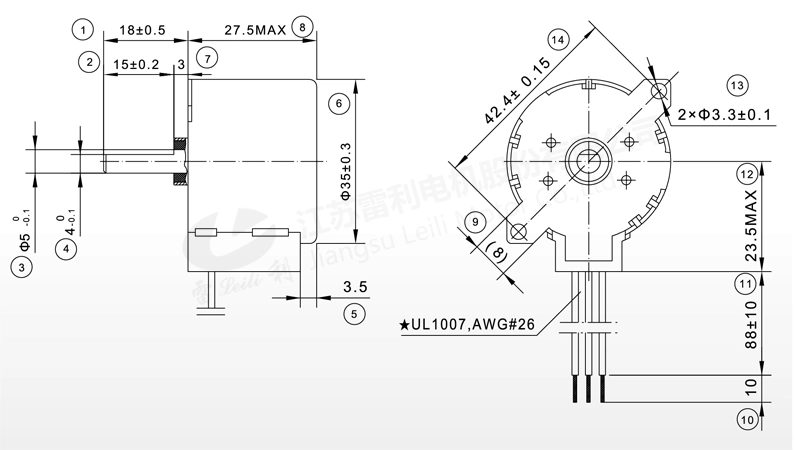

Mechanical Dimensions: mm
