35SM25 Permanent Magnet Synchronous Motor
Product Introduction
- Model:35SM25
- Operates at 120VAC (60Hz) or 230VAC (50Hz) with rated speeds of 0.868-2 RPM.
- Delivers ≥0.95-1.81 kgf·cm torque, maintaining ≤10mA no-load current and ≤60K temperature rise.
Product Application
- Industry: valve control, timer
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Motor Model | Rated Voltage | Frequency | Rotational Speed | No-load Current | No-load Power | Output Torque | Starting Voltage | Temperature Rise | Noise | Insulation Class |
| (VAC) | (Hz) | (RPM) | （mA) | (W) | (kgf·cm) | (V) | (K) | (A) | ||
| 35SM25 | 120 | 60 | 2 | ≤10 | ≤3 | ≥0.95 | ≤90 | ≤60 | ≤40 | A |
| 230 | 50 | 0.868 | ≤10 | ≤3 | ≥1.81 | ≤190 | ≤60 | ≤40 | ||
| 120 | 60 | 1 | ≤10 | ≤3 | ≥1.73 | ≤90 | ≤60 | ≤40 |

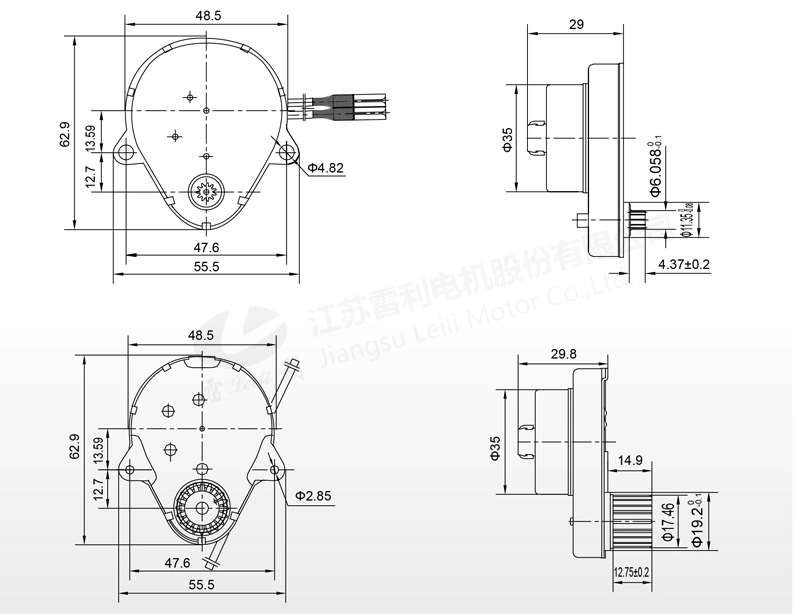

Mechanical Dimensions: mm
