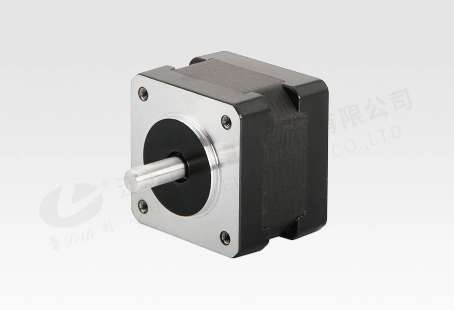

35 Series Hybrid Stepper Motor
Product Introduction
- 35 Series motors offer 0.1-0.4 N·m torque, ideal for compact applications.
- Low resistance and inertia enable efficient, precise motion control.
Product Application
- CCTV monitor
- Medical appliance
- OA financial equipment
- Industrial equipment
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Current (RmsA) |
Resistance （Ω） |
Inductance （mH） |
Holding Torque （N·m） |
Rotor Inertia （g·cm²） |
Motor Length （mm） |
Motor Weight （g） |
| 14H2027 | 0.5 | 9.2 | 7.4 | 0.1 | 12 | 27 | 150 |
| 14H2037 | 1.5 | 1.65 | 2.1 | 0.2 | 20 | 37 | 210 |
| 14H2052 | 1.5 | 2.65 | 4.1 | 0.4 | 35 | 52 | 250 |

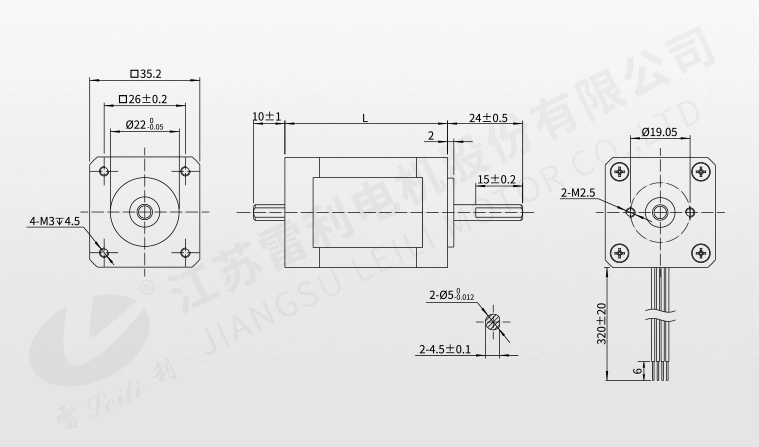

Mechanical Dimensions: mm
