33ZYJ360 DC Brushed Gear Motor
Product Introduction
- Electrical Performance: Operates within 6-20V, rated at 12V, with a no-load speed of 96 r/min.
- Load Characteristics: Delivers 76 r/min at 0.242A, outputting 1.09W with 137 mN.m torque.
- Stall Specifications: Provides 650 mN.m torque at 0.9A, ensuring reliable high-load performance.
Product Application
- Home appliances: hair dryer
- Industry: vending machines
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Vol | No-Load | Max | Stall | ||||||||
| Working range (V) |
Rated (V) |
Speed (r/min) |
Current (A) |
Speed (r/min) |
Current (A) |
Torque (mN.m) |
Torque (g.cm) |
Output (W) |
Torque (mN.m) |
Torque (g.cm) |
Current (A) |
|
| 33ZYJ360-1 | 6-20 | 12 | 96 | 0.1 | 76 | 0.242 | 137 | 1397.4 | 1.09 | 650 | 6630 | 0.9 |

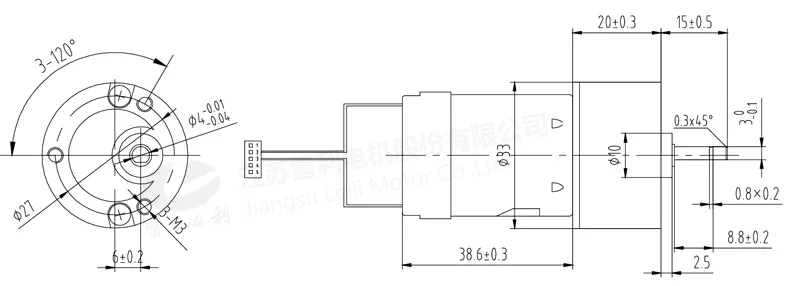

Mechanical Dimension: mm

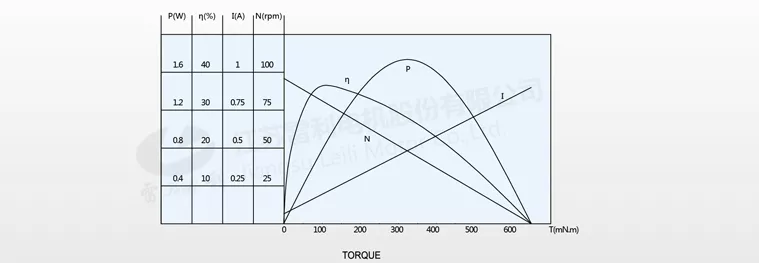

Performance Curves
