26ZYJ546 DC Brushed Gear Motor
Product Introduction
- Model: 26ZYJ546
- Performance: 10V, 295 RPM no-load, 260 RPM load, ≤5.2A load current, 1:18.4 reduction ratio.
- Load Capacity: Handles 700mN·m torque, stall torque ≥3500mN·m, ensuring stable and reliable performance.
- Power Efficiency: Low no-load current, strong torque output, optimized for precision and durability in motion applications.
Product Application
- Auto parts
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Rated Voltage | No-Load Speed | No-Load Current | Load Speed | Load Current | Stall Current | Stalling Torque | Withstand Voltage | Insulation Resistance | low Voltage | Reduction Ratio | Movement Amount |
| （V） | (r/min±10%) | (mA) | (RPM) | (A) | (mA) | (N·m) | (V) | (mm) | |||
| 10 | 295 | ≤ 1.2 | When loading is 700mN.m | ≤ 20 | ≥ 3500 | ★No breakdown or flashover | ≥ 50 | ≤ 3 | 01:18.4 | 0.05~0.3 | |
| The RPM is 260, and current | |||||||||||
| is lower than 5.2A. | |||||||||||

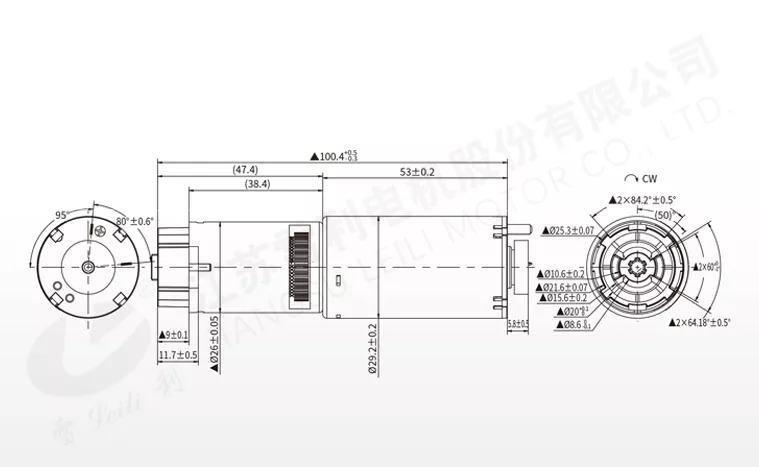

Mechanical Dimension: mm
