25BY412 PM Stepper Motor
Product Introduction
- Car head-up displays HUD 25BY412
- With 18° step angle, 35Ω resistance, 1200 pps maximum slew speed capability.
- Provides 6.0 holding torque, 800 pps starting frequency, bipolar drive mode, Ø2.0 lead screw.
Product Application
- Car head-up displays HUD
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Step Angle | Driving Mode | Excitation Mode | Voltage (VDC) | Resistance (Ω) soil 10%/phase (25℃) |
inductance mH±25% | Self-positioning Torque (mN•m) |
Holding Torque (mN•m) |
Pull in Torque (mN•m) 400Hz |
Pull out torque (mN•m) 400Hz |
Pull-in Frequency (Hz) |
Pull-out Frequency (Hz) |
Dielectric Strength of Insulation Coil Housing (AC 500V 3mA 1min) |
Insulation Impedance (DC500V) (MQ) |
Noise 12V 400Hz |
| 25BY412-351 | 3.75° | bipolar | 1-2 phase | 12 | 50 | 34 | ≥ 1.8 | ≥ 23 | ≥ 9.6 | ≥ 12.8 | ≥ 1500 | ≥ 2200 | No breakdown or flare | ≥ 100 | ≤ 45dB ( No noisy ) |

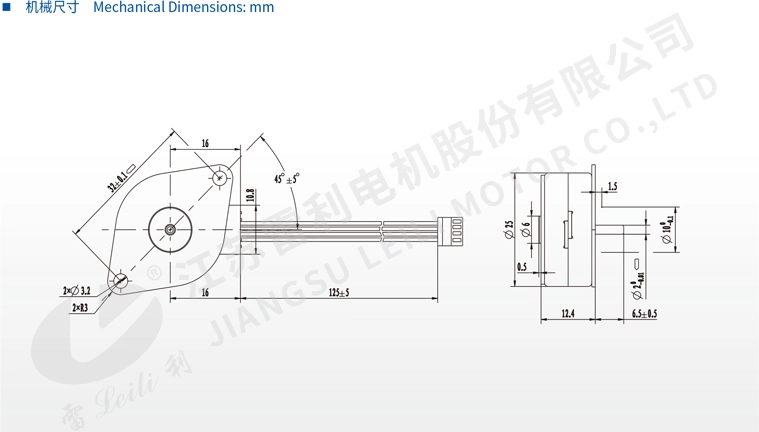

Mechanical Dimensions: mm
