22BY45 PM Stepper Motor

22BY45 PM Stepper Motor

Product Introduction

  • High-precision stepper motor with an 18° step angle, 12V voltage, and 25Ω phase resistance for stability.
  • Low-noise operation at ≤35dB, with strong 11.76mN·m holding torque and 700Hz pull-out frequency.

Product Application

  • Automotive air conditioning damper/electric outlet

Product Parameters

Step Angle Driving Mode Excitation Mode Voltage (VDC) Resistance
Soil 7%Ω/ Phase
(25℃)
Inductance
mH/Phase
Self-positioning Torque
(mN•m)
Holding Torque
(mN•m)
Pull-in Frequency (Hz) Pull-out Frequency
(Hz)
Pull-out Torque (mN•m
400Hz)
★Insulation
Dielectric Strength
(AC 500V,
1mA, 1min)
★Insulation Resistance DC500V
(MQ)
Noise dB(A)
460Hz
18° bipolar 2-2 phase 12 25 18(REF) 0.59
(REF)
≥ 11.76 ≥ 550 ≥ 700 ≥ 7.84 No breakdown or flare ≥ 100 ≤ 35dB
(Indistinct sound)

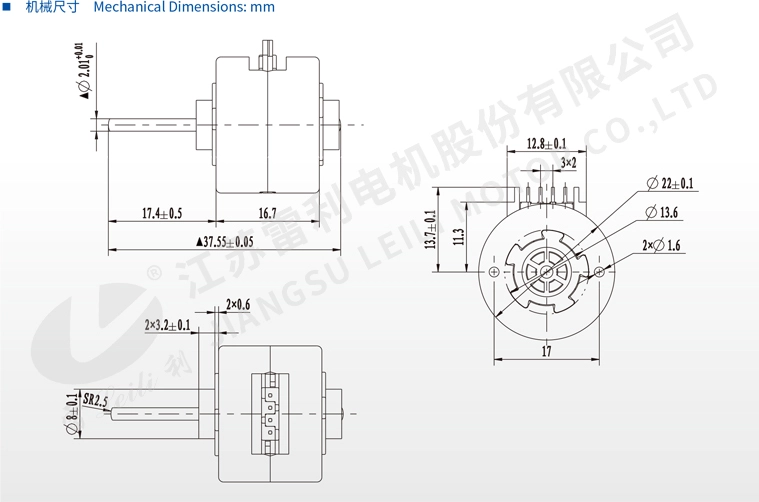

Mechanical Dimensions: mm

22BY45 PM Stepper Motor for Car Air Conditioning Damper Electric Outlet
