20BY46 PM Stepper Motor
Product Introduction
- Model:20BY46
- Features a 15° step angle, 12 VDC, and ≥9.8 mN·m holding torque.
- Operates at -10°C to 50°C with a noise level ≤50 dB and AC 500V insulation.
Product Application
- Industry: Printer
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Motor Model | Step Angle | Excitation Method | Drive Way | Voltage | Current / Phase | Coil Resistance/Phase | Self-positioning Torque | Self-positioning Torque | Holding Torque | Noise | Working Temperature |
| (°) | (VDC) | (mA) | (Ω) | (mN.m) | (mN·m) | (Ω) | (A) | (℃) | |||
| 20BY46 | 15 | 2-2 | Bipolar | 12 | – | 30 | 2.94 | ≥ 9.8 | AC 500 (V) | ≤ 50 | -10 ～ 50 |
| Phase | Bipolar | 1 (min) | (No strange sound) |

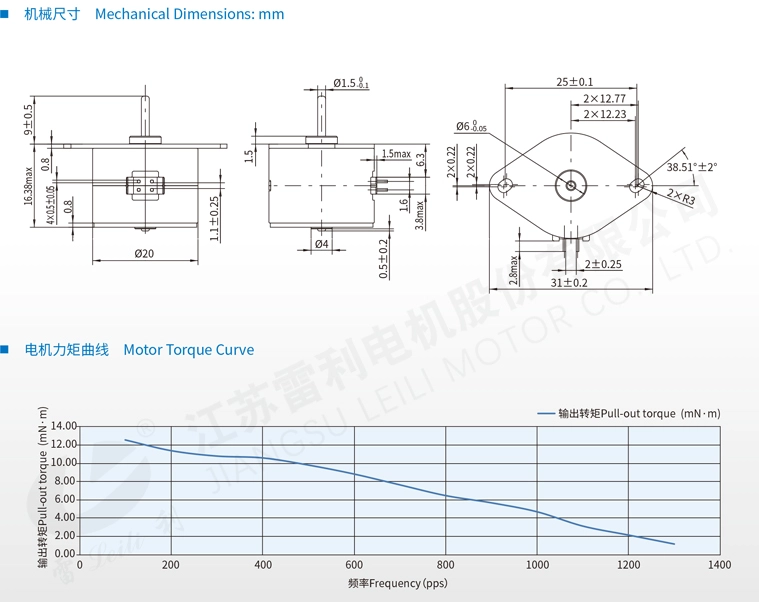

Mechanical Dimensions: mm
