20 Series Hybrid Stepper Motor

20 Series Hybrid Stepper Motor

Product Introduction

  • Deliver 0.012–0.02 N·m torque, combining compactness and efficiency for precise motion.
  • Low current, minimal inertia, and small footprints ensure easy integration across various applications.

Product Application

  • Medical appliance
  • Industrial control

Product Parameters

Model Current
(RmsA)
Resistance
(Ω)
Inductance
(mH)
Holding Torque
(N·m)
Rotor Inertia
(g·cm²)
Motor Length
(mm)
Motor Weight
(g)
8H2028 0.5 5.1 1.5 0.012 2.7 27 60
8H2038 0.5 8.8 2.7 0.02 3.3 38.2 80

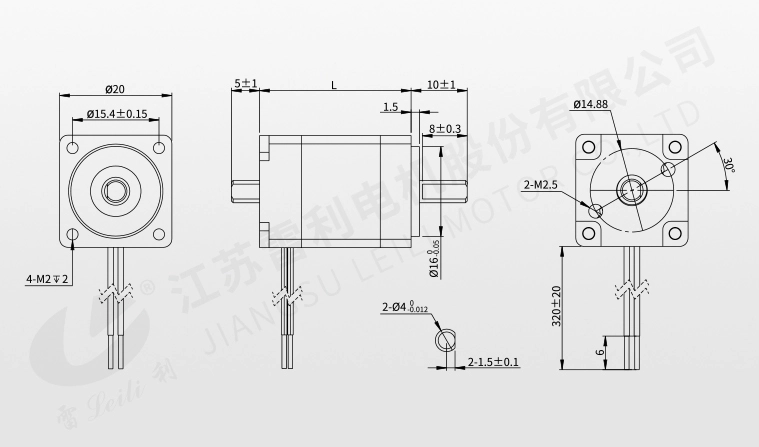

Mechanical Dimensions: mm

Mechanical Dimensions of 20 Series Hybrid Stepping Motor

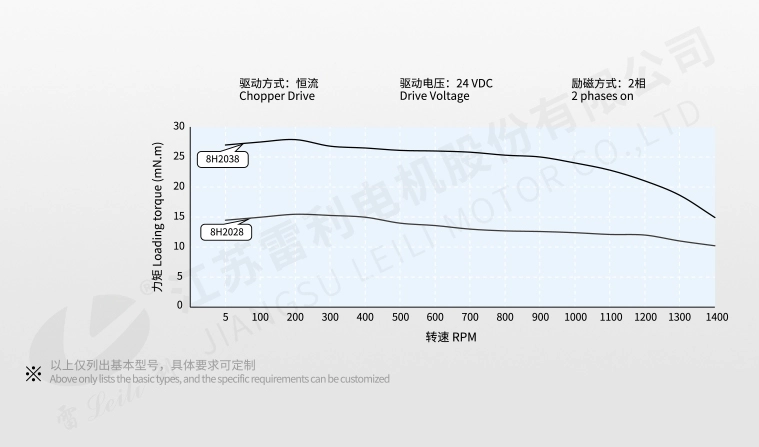

Frequency-torqu Characteristics

Frequency torqu characteristics of 20 Series Hybrid Stepping Motor
