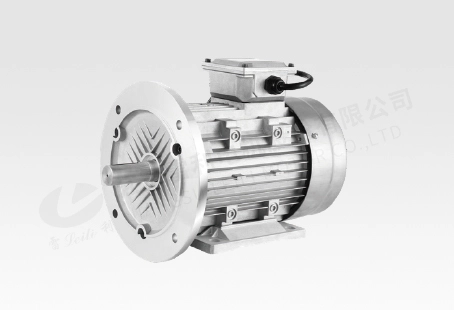

18.5KW Permanent Magnet Synchronous Motor

18.5KW Permanent Magnet Synchronous Motor
18.5KW Permanent Magnet Synchronous Motors

18.5KW Permanent Magnet Synchronous Motor

Product Introduction

  • Delivers 18.5 kW power, 58.89-117.78 N·m torque, and 94.3%-95.6% efficiency at 3000 RPM.
  • Rated for 380V, 38.2-39A current, ensuring stable performance with IP55 protection.

Product Applications

  • Industrial Equipment
  • Industrial Water Pump
  • Industrial Fan
  • Warm Reminder:
  • The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Inquiry Now

Product Parameters

Rated Power Rated Speed RatedTorque Frame Model Rated Voltage Rated Current Frequency Pole Efficiency Power Protection
(kW) (r/min) (N·m) (V) （A） (Hz) Factors Level
18.5 1500 117.78 160L ZB-160L1-1500 380 39 250 20 94.3 0.98 55
18.5 3000 58.89 160L ZB-160L-3000 380 38.2 500 20 95.6 0.98 55

Mechanical Dimensions: mm

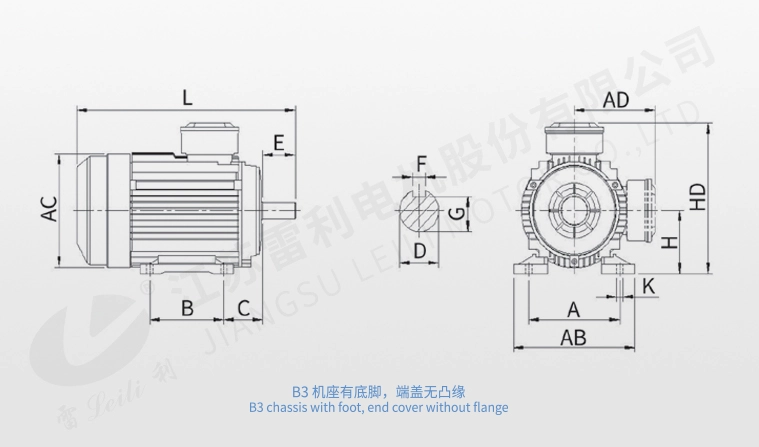

B3 chassis with foot, end cover without flange

B3 chassis with foot, end cover without flange

Frame Installation Size(mm) Outline Size(mm)
A B C D E F G H K AB AC AD HD L
160L 254 254 108 42 110 12 37 160 15 315 315 240 400 670
160L 254 254 108 48 110 14 42.5 160 15 315 315 240 400 670
160L 254 254 108 55 110 16 49 160 15 315 315 240 400 670

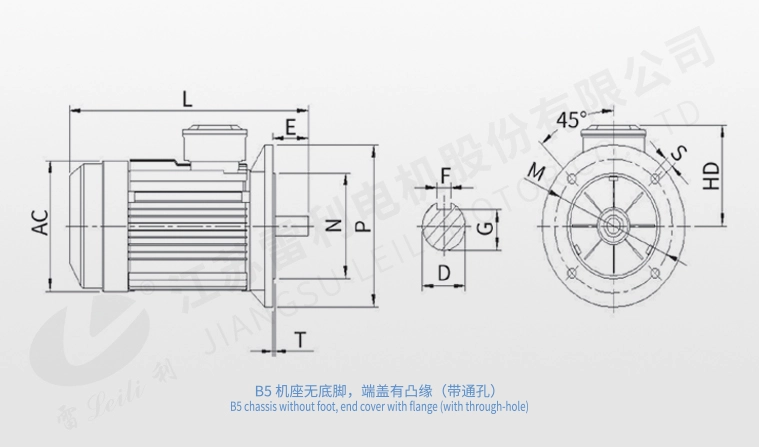

B5 chassis without foot, end cover with flange (with through-hole)\

B5 chassis without foot, end cover with flange (with through-hole)

Frame InstallationSize(mm) OutlineSize(mm)
D E F G M N P S T AC AD L
160L 42 110 12 37 300 250 350 19 5 315 240 670
160L 48 110 14 42.5 300 250 350 19 5 315 240 670
160L 55 110 16 49 300 250 350 19 5 315 240 670

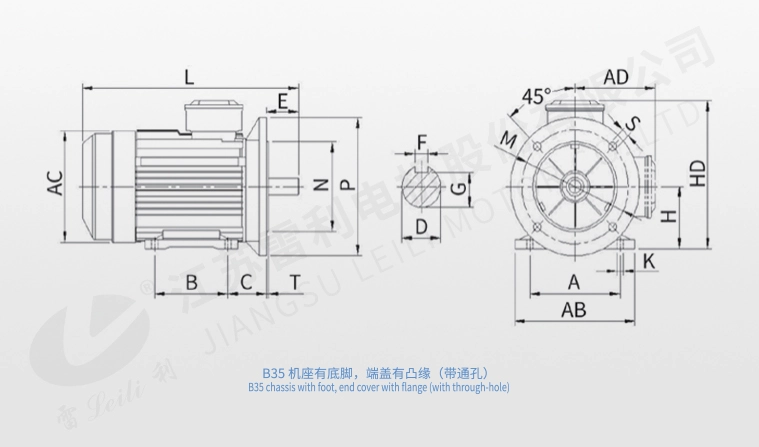

B35 chassis with foot, end cover with flange (with through-hole)

B35 chassis with foot, end cover with flange (with through-hole)

Frame Installation Size(mm) Outline Size(mm)
A B C D E F G H K M N P S T AB AC AD HD L
160L 254 254 108 42 110 12 37 160 15 300 250 350 19 5 315 315 240 400 670
160L 254 254 108 48 110 14 42.5 160 15 300 250 350 19 5 315 315 240 400 670
160L 254 254 108 55 110 16 49 160 15 300 250 350 19 5 315 315 240 400 670
