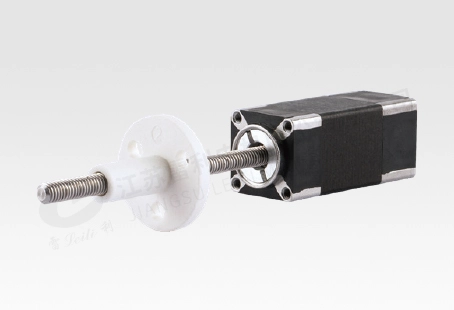

14 Series Slide Screw Hybrid Stepper Motor

14 Series Slide Screw Hybrid Stepper Motor

Product Introduction

  • The 6-2103 motor delivers precise motion with 6.6V, 0.3A current and 22Ω resistance.
  • This motor weighs 60g, features a 32mm length, and operates with 4 lead wires.

Product Application

  • Medical appliance
  • Industrial control

Product Parameters

Motor Voltage
(VDC)
Current
(A)
Resistance
(Ω)
Inductance
(mH)
Weight
(g)
Lead
Wire No.
Motor Length
(mm)
6-2103 6.6 0.3 22 4.5 60 4 32

Available Lead Screw And Travel Per Step

ScrewDia. ScrewDia. Lead Lead LeadCode [email protected]
(inch) (mm) (inch) (mm) (mm)*
0.138 3.5 0.0118 0.3 AF 0.0015
0.138 3.5 0.024 0.6096 AA 0.003048
0.138 2.5 0.0394 1 AB* 0.005
0.138 3.5 0.048 1.2192 B 0.006096
0.138 3.5 0.0787 2 G 0.01
0.138 3.5 0.1575 4 M 0.02
0.138 3.5 0.315 8 T 0.04

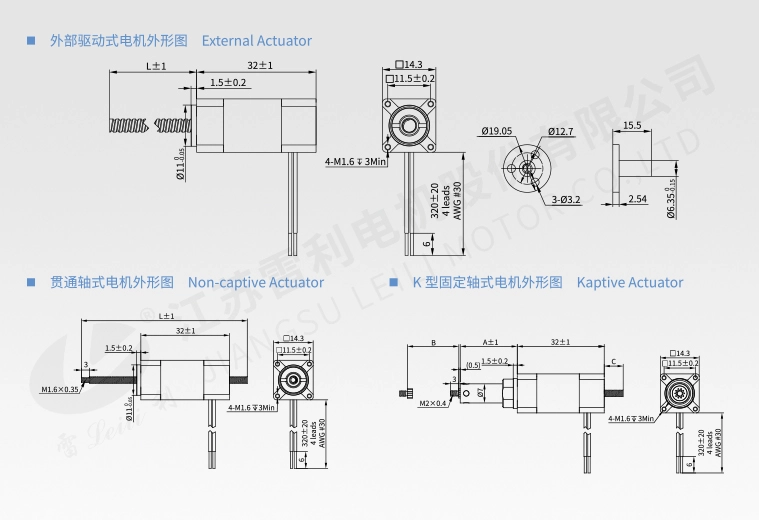

Mechanical Dimensions: mm

14 series Slide screw HB stepping motor mechanical dimensions
