14 Series Hybrid Stepper Motor
Product Introduction
- 14 series motor offers 0.005 N·m holding torque, ensuring precision and efficiency.
- With low inertia and compact design, this motor is perfect for space-constrained, lightweight applications.
Product Application
- Medical appliance
- Industrial control
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Current (RmsA) |
Resistance （Ω） |
Inductance （mH） |
Holding Torque （N·m） |
Rotor Inertia （g·cm²） |
Motor length （mm） |
Motor Weight （g） |
| 6H2030 | 0.3 | 23 | 4 | 0.005 | 1.5 | 32 | 30 |

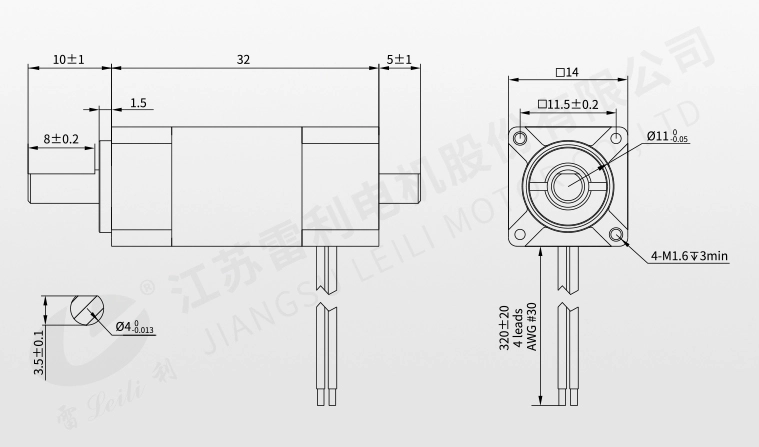

Mechanical Dimensions: mm
Frequency-torqu Characteristics
