14 Series Ball Screw Hybrid Stepper Motor

14 Series Ball Screw Hybrid Stepper Motor

Product Introduction

  • The ball screw motor offers precise performance with a compact 32 mm length design.
  • Low 0.3A current and high 22Ω resistance ensure efficient, reliable operation.

Product Application

  • Medical appliance
  • Industrial control

Product Parameters

Model Voltage
(V)
Current
(Rms A)
Resistance
(Ω)
Inductance
(mH)
Lead Wire No. Motor Length
(mm)
6E2103 6.6 0.3 22 3.6 4 32

Mechanical Dimensions: mm

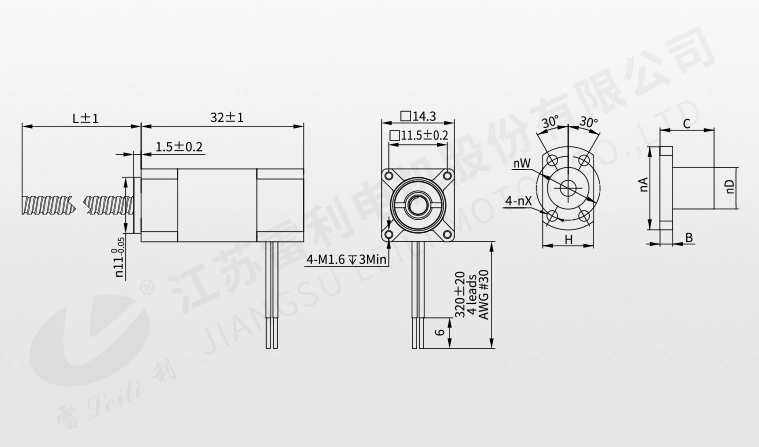

14 series Ball screw Hybrid Stepping Motors dimension

Technology Performance

Balls Crew Type 401 402
Ball Size Ø0.8 Ø0.8
Number of Thread 1 1
Thread Direction Right
Shaft Root dia. Ø3.3 Ø3.3
Number of Circuits 3.7×1 2.7×1
Shaft, nut Material SCM415H
Surface Hardness HRC58~62
Anti-rust Treatment Anti-rustoil
Grade C7
Nutsize A B C D H W X Position Accuracy Total Runout Axial Play Dynamic Load(N) Rated Static Load(N)
BS0401 23 4 17 11 15 17 3.4 ±0.05 0.12 ≤0.03 560 790
BS0402 23 4 19 11 15 17 3.4 ±0.05 0.12 ≤0.03 420 570

Frequency-torqu Characteristics

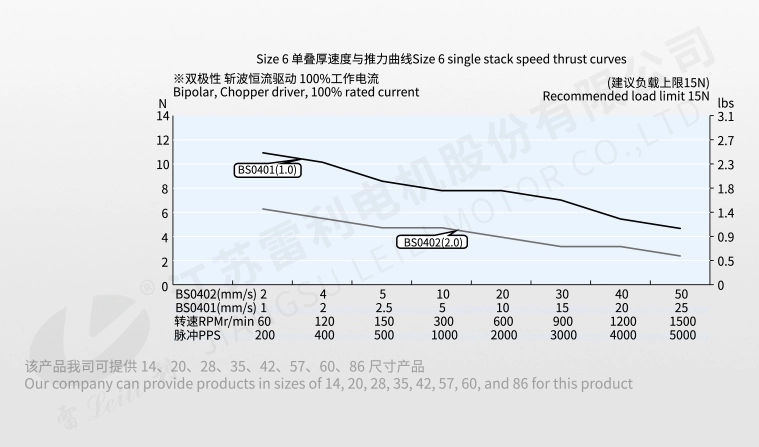

Frequency torqu characteristics of 14 series ball screw Hybrid Stepping Motors
