08BY25T PM Stepper Motor
Product Introduction
- Stepper Motor 08BY25T
- Bipolar motor 08BY25T-01 with 18° step angle, 15-35Ω resistance, and 6.0 max holding torque.
- Features 3-5V voltage, Ø1.7-2.25 lead screw, and maximum 2500 pps slew speed.
Product Application
- Digital camera, security monitoring
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Step Angle |
Voltage (V) |
Resistance (Ω) |
Phase | Drive Mode |
Max. starting Frequency (pps) |
Max. slew Speed (pps) |
Holding Torque |
Lead Screw Major Dia | Lead Screw Lead pitch |
| 08BY25T-01 | 18° | 5.0 | 22 | 2-2 | Bipolar | 800 | 1200 | 6.0 | Ø1.7 | 0.3 |
| 08BY25T-02 | 18° | 5.0 | 35 | 2-2 | Bipolar | 800 | 1200 | 6.0 | Ø1.7 | 0.3 |
| Model | Step Angle |
Voltage (V) |
Resistance (Ω) |
Phase | Drive Mode |
Max. starting Frequency (pps) |
Max. slew Speed (pps) |
Holding Torque |
Pinion Module | PinionPCD | Pinion Z |
| 08BY25-01 | 18° | 3.3 | 15 | 2-2 | Bipolar | 1200 | 2500 | 6.0 | – | – | – |
| 08BY25-02 | 18° | 4.8 | 35 | 2-2 | Bipolar | 800 | 1000 | 4.8 | 0.25 | Ø2.25 | 9 |
| 08BY25-03 | 18° | 3 | 21 | 2-2 | Bipolar | 800 | 1000 | 6.0 | 0.2 | Ø2.4 | 12 |

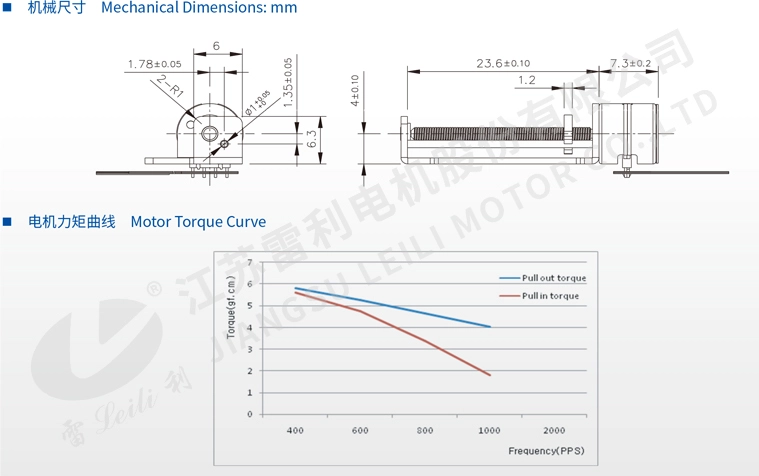

Mechanical Dimensions: mm
