065BY25T PM Stepper Motor
Product Introduction
- Stepper motor 065BY25T
- Compact stepper motor with 18° step angle, 33Ω resistance, and 2000 pps starting frequency.
- High-precision stepper motor, 9° step angle, Ø1.7 lead screw, and 3.0 holding torque.
Product Application
- Digital camera, security monitoring
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com
Product Parameters
| Model | Step Angle |
Voltage (V) |
Resistance (Ω) |
Phase | Drive Mode |
Max. starting Frequency (pps) |
Max. slew Speed (pps) |
Holding Torque |
Lead screw Major Dia | Lead Screw Lead Pitch |
| 065BY25T-01 | 18° | 3.0 | 33 | 1-2 | Bipolar | 2000 | 5000 | 1.8 | Ø1.7 | 0.2 |
| 065BY25T-02 | 18° | 3.0 | 33 | 2-2 | Bipolar | 1500 | 3000 | 3.0 | Ø1.7 | 0.2 |
| 065BY25T-03 | 18° | 3.0 | 55 | 2-2 | Bipolar | 1500 | 3000 | 3.0 | Ø2.0 | 0.3 |
| 065BY25T-04 | 9° | 3.0 | 20 | 1-2 | Bipolar | 2000 | 3500 | 3.0 | Ø1.7 | 0.2 |

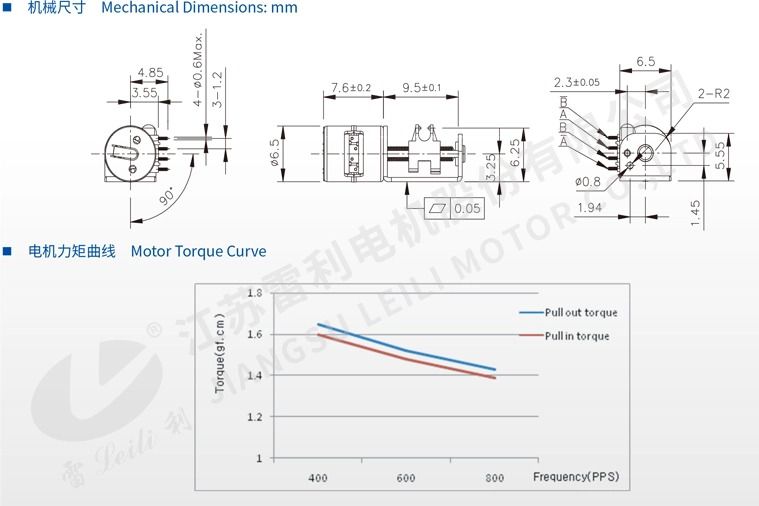

Mechanical Dimensions: mm
